Trunking

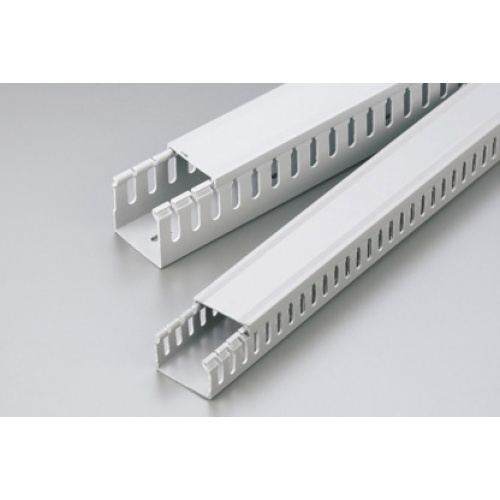

Wire trunking - also known as wiring duct or slotted wire duct - are rectangular channels designed to protect, organize, and route electrical wires, cables, and hoses.
- Material: PVC, insulating and heat-resistant to 85℃
- Construction: Duct bottom and lid, with two out-holes at the bottom.
- Application: Terminated wires to be re-routed easily through the snap-off fingers, which are wide with rounded edges to protect wires and hands from cuts.
- Can be affixed to the wall with screws or adhesive.
Item
Stock Code

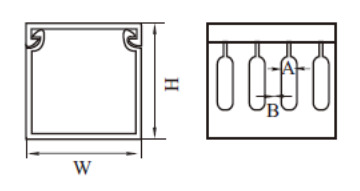

W (mm)
H (mm)
Thickness (mm)
A (mm)
B (mm)
Length (m)
Contained Wires 1.5 mm²
Colour
Items Per Box
WD-2525
32525
25
25
1.5
4
6
2
10-25
grey
20
WD-4025
34025
40
25
1.5
6
8
2
20-40
grey
20
WD-4040
34040
40
40
1.5
6
8
2
45-55
grey
20
WD-4060
34060
40
60
1.5
6
8
2
60-80
grey
20
WD-6025
36025
60
25
1.5
6
9
2
45-60
grey
20
WD-6040
36040
60
40
1.5
6
9
2
90-100
grey
20
WD-6060
36060
60
60
1.8
6
9
2
140-160
grey
10
WD-8025
38025
80
25
1.5
6
8
2
60-70
grey
10
WD-8040
38040
80
40
1.5
6
8
2
100-120
grey
10
WD-8060
38060
80
60
1.8
6
10
2
250-300
grey
10
WD-8080
38080
80
80
1.8
8
10
2
280-350
grey
6
WD-80100
380100
80
100
1.8
8
10
2
300-400
grey
6
WD-100100
3100100
100
100
2.1
10
12
2
300-400
grey
6
