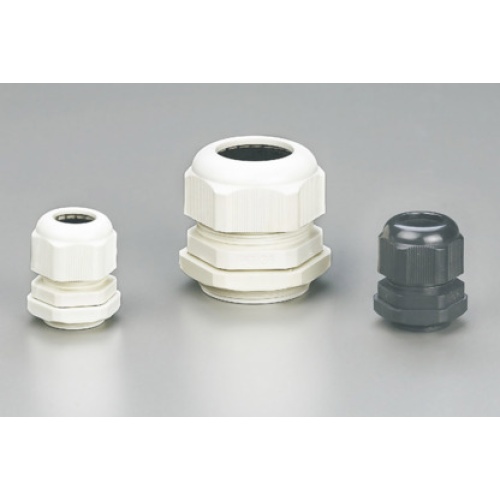

Cable Glands
Secures and seals the end of an electrical cable, providing strain relief and protection against environmental factors. It is crucial in applications where cables need secure termination.
- Material: UL Nylon 66, 94V-2. Seal is rubber.
- Feature: No need to disassemble the cable gland, insert cable directly then tighten it.
- Application： Used for control boxes, distribution plates, machine and electrical enclosures.

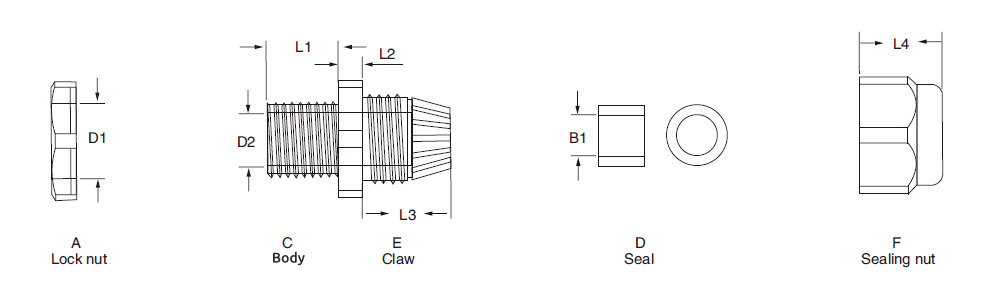

Item
Stock Code
D1 (mm)
D2 (mm)
L1 (mm)
L2 (mm)
L3 (mm)
L4 (mm)
B1 (mm)
Cable Diameter (mm)
Colour
Items Per Box
PG-11
SLPG11
18.2
13.4
8.7
5.1
18.1
17.9
11.3
5-10
black
1
PG-16
SLPG16
22.3
17.6
11.3
5.2
20.2
18.1
13.7
10-14
black
1
PG-19
SLPG19
24.1
19.1
11.1
5.1
21.1
20.5
15.8
12-15
black
1
PG-21
SLPG21
26.7
21.4
11.1
5.1
23.0
22.0
17.4
13-18
black
1
PG-24
SLPG24
30.1
24.8
12.8
5.8
23.9
23.7
23.1
15-22
black
1
PG-29
SLPG29
35.9
28.8
11.9
6.9
24.4
23.5
25.3
18-25
black
1
PG-36
SLPG36
46.4
39.1
16.0
7.8
30.7
27.3
31.9
22-32
black
1
PG-42
SLPG42
53.9
46.7
15.4
7.9
33.2
28.5
37.1
30-38
black
1
