Ring Terminals

Ring terminals feature a ring-shaped end, offering better protection against loosening and disconnection. Vibrations may cause spade terminals to loosen, as the end is open.

  • Insulated Ring Terminal
  • Nylon Insulated

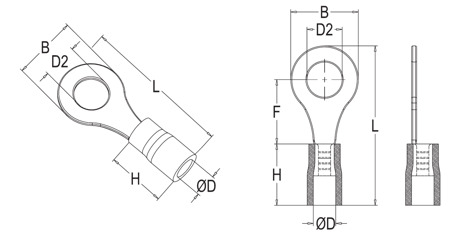

Item
Stock Code
Wire Cross Section (mm²)
D2 (mm)
B (mm)
L (mm)
F (mm)
H (mm)
Dφ (mm)
Colour
Items Per Bag
RV1.25-4
162574
0.5-1.5
4.3
8.0
22.0
7.0
10.0
4.3
red
100
RV1.25-5
162575
0.5-1.5
5.3
8.0
21.5
7.0
10.0
4.3
red
100
RV1.25-6
162576
0.5-1.5
6.5
9.8
23.0
8.5
10.0
4.3
red
100
RV1.25-8
162578
0.5-1.5
8.4
11.6
27.5
11.1
10.0
4.3
red
100
RV1.25-10
162570
0.5-1.5
10.5
13.6
31.6
13.9
10.0
4.3
red
100
RV2-4
162024
1.5-2.5
4.3
8.5
22.5
7.75
10.0
4.9
blue
100
RV2-5
162025
1.5-2.5
5.3
8.5
22.5
7.75
10.0
4.9
blue
100
RV2-6
162026
1.5-2.5
6.5
9.5
22.5
7.25
10.0
4.9
blue
100
RV2-8
162028
1.5-2.5
8.4
12.0
27.6
11.0
10.0
4.9
blue
100
RV2-10
162020
1.5-2.5
10.5
13.6
30.2
13.9
10.0
4.9
blue
100
RV2-12
162022
1.5-2.5
13.0
19.2
36.5
16.5
10.0
4.9
blue
100
RV5.5-4
165014
4-6
4.3
7.2
21.4
5.9
13.0
6.7
yellow
100
RV5.5-5
165015
4-6
5.3
9.5
25.5
8.3
13.0
6.7
yellow
100
RV5.5-6
165016
4-6
6.5
12.0
31.5
13.0
13.0
6.7
yellow
100
RV5.5-8
165018
4-6
8.4
15.0
33.7
13.7
13.0
6.7
yellow
100
RV5.5-10
165010
4-6
10.5
15.0
33.7
13.7
13.0
6.7
yellow
100
RV5.5-12
165012
4-6
13.0
19.2
38.1
16.0
13.0
6.7
yellow
100
