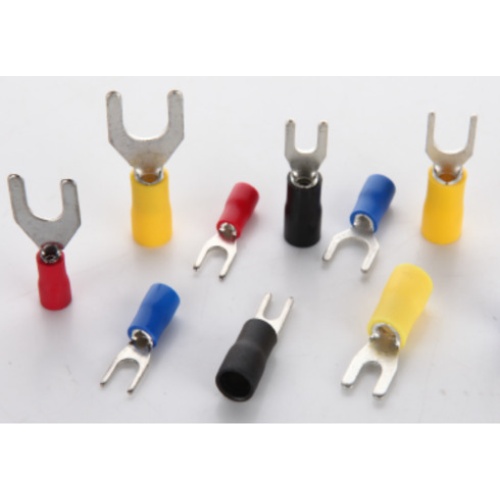

Fork Terminals

Fork terminals, also known as spade terminals, are shaped like a 'U' or fork, allowing wires to be attached to terminal blocks without fully removing screws. This not only saves time but also ensures a more reliable connection.

  • Insulated Fork Terminal
  • Nylon Insulated

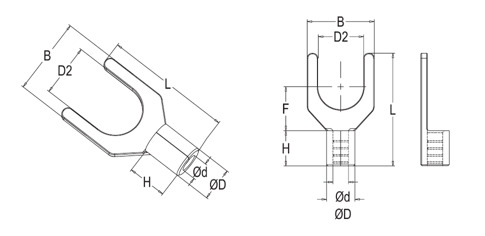

Item
Stock Code
Wire Cross Section (mm²)
D2 (mm)
B (mm)
L (mm)
F (mm)
H (mm)
Dφ (mm)
Colour
Items Per Bag
SV1.25-4
171254
0.5-1.5
4.3
6.4
21.2
6.5
10.0
4.3
red
100
SV1.25-5
171255
0.5-1.5
5.3
8.1
21.2
6.5
10.0
4.3
red
100
SV2-4
172240
1.5-2.5
4.3
6.4
21.2
6.5
10.0
4.9
blue
100
SV2-5
172250
1.5-2.5
5.3
8.1
21.2
6.5
10.0
4.9
blue
100
SV5.5-4
175540
4-6
4.3
8.3
25.2
7.5
13.0
6.7
yellow
100
SV5.5-5
175550
4-6
5.3
9.0
25.2
7.5
13.0
6.7
yellow
100
