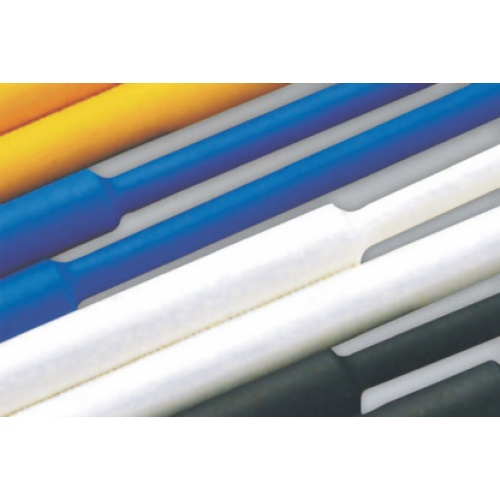

Heat Shrink Tubing
Heat shrink tubing insulates electrical components from external factors such as moisture, dust, abrasion, and sharp objects that might otherwise damage wires and electrical components.
- Provides abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals.
- Repair the insulation on wires or bundle them together.
- Create cable entry seals, offering environmental sealing protection.
Item
Stock Code
ID Pre-shrunk D1 (mm)
Wall Thickness Pre-shrunk W1 (mm)
ID Shrunk (mm)
Wall Thickness Shrunk (mm)
Colour
Meters Per Roll
DRS-3
20003YG
3
0.25±0.05
1.5
0.45±0.1
yellow/green
100
DRS-3.5
200035W
3.5
0.25±0.05
1.75
0.45±0.1
white
100
DRS-3.5
200035BK
3.5
0.25±0.05
1.75
0.45±0.1
black
100
DRS-3.5
200035R
3.5
0.25±0.05
1.75
0.45±0.1
red
100
DRS-3.5
200035BL
3.5
0.25±0.05
1.75
0.45±0.1
blue
100
DRS-3.5
200035G
3.5
0.25±0.05
1.75
0.45±0.1
green
100
DRS-3.5
200035YG
3.5
0.25±0.05
1.75
0.45±0.1
yellow/green
100
DRS-7
20007W
7
0.35±0.05
3.5
0.55±0.1
white
100
DRS-7
20007BK
7
0.35±0.05
3.5
0.55±0.1
black
100
DRS-7
20007R
7
0.35±0.05
3.5
0.55±0.1
red
100
DRS-7
20007BL
7
0.35±0.05
3.5
0.55±0.1
blue
100
DRS-7
20007G
7
0.35±0.05
3.5
0.55±0.1
green
100
DRS-10
20010W
10
0.35±0.05
5.0
0.60±0.1
white
100
DRS-10
20010BK
10
0.35±0.05
5.0
0.60±0.1
black
100
DRS-10
20010R
10
0.35±0.05
5.0
0.60±0.1
red
100
DRS-10
20010BL
10
0.35±0.05
5.0
0.60±0.1
blue
100
DRS-10
20010YG
10
0.35±0.05
5.0
0.60±0.1
yellow/green
100
DRS-13
20013W
13
0.35±0.1
6.5
0.70±0.1
white
100
DRS-13
20013BK
13
0.35±0.1
6.5
0.70±0.1
black
100
DRS-13
20013R
13
0.35±0.1
6.5
0.70±0.1
red
100
DRS-13
20013BL
13
0.35±0.1
6.5
0.70±0.1
blue
100
DRS-13
20013G
13
0.35±0.1
6.5
0.70±0.1
green
100
DRS-13
20013YG
13
0.35±0.1
6.5
0.70±0.1
yellow/green
100
DRS-18
20018W
18
0.4±0.1
9.0
0.80±0.1
white
100
DRS-18
20018BK
18
0.4±0.1
9.0
0.80±0.1
black
100
DRS-18
20018R
18
0.4±0.1
9.0
0.80±0.1
red
100
DRS-18
20018BL
18
0.4±0.1
9.0
0.80±0.1
blue
100
DRS-18
20018G
18
0.4±0.1
9.0
0.80±0.1
green
100
DRS-20
20020BK
20
0.5±0.1
10.0
0.90±0.1
black
100
DRS-20
20020R
20
0.5±0.1
10.0
0.90±0.1
red
100
DRS-20
20020BL
20
0.5±0.1
10.0
0.90±0.1
blue
100
DRS-20
20020YG
20
0.5±0.1
10.0
0.90±0.1
yellow/green
100
DRS-25
20025W
25
0.5±0.1
12.5
0.90±0.1
white
50
DRS-25
20025BK
25
0.5±0.1
12.5
0.90±0.1
black
50
DRS-25
20025R
25
0.5±0.1
12.5
0.90±0.1
red
50
DRS-25
20025BL
25
0.5±0.1
12.5
0.90±0.1
blue
50
DRS-25
20025G
25
0.5±0.1
12.5
0.90±0.1
green
50
DRS-25
20025YG
25
0.5±0.1
12.5
0.90±0.1
yellow/green
50
DRS-40
20040W
40
0.5±0.1
20.0
1.00±0.2
white
25
DRS-40
20040BK
40
0.5±0.1
20.0
1.00±0.2
black
25
DRS-40
20040R
40
0.5±0.1
20.0
1.00±0.2
red
25
DRS-40
20040G
40
0.5±0.1
20.0
1.00±0.2
blue
25
DRS-40
20040YG
40
0.5±0.1
20.0
1.00±0.2
green
25
DRS-40
20040W
40
0.5±0.1
20.0
1.00±0.2
yellow/green
25
DRS-50
20050W
50
0.5±0.1
25.0
1.00±0.2
white
25
DRS-50
20050BK
50
0.5±0.1
25.0
1.00±0.2
black
25
DRS-50
20050R
50
0.5±0.1
25.0
1.00±0.2
red
25
DRS-50
20050BL
50
0.5±0.1
25.0
1.00±0.2
blue
25
DRS-50
20050G
50
0.5±0.1
25.0
1.00±0.2
green
25
DRS-80
20080W
80
0.6±0.1
40.0
1.20±0.2
white
25
DRS-80
20080BK
80
0.6±0.1
40.0
1.20±0.2
black
25
DRS-80
20080R
80
0.6±0.1
40.0
1.20±0.2
red
25
DRS-80
20080BL
80
0.6±0.1
40.0
1.20±0.2
blue
25
DRS-80
20080G
80
0.6±0.1
40.0
1.20±0.2
green
25
DRS-100
20100W
100
0.7±0.1
50.0
1.30±0.2
white
25
DRS-100
20100BK
100
0.7±0.1
50.0
1.30±0.2
black
25
DRS-100
20100R
100
0.7±0.1
50.0
1.30±0.2
red
25
DRS-100
20100BL
100
0.7±0.1
50.0
1.30±0.2
blue
25
DRS-100
20100G
100
0.7±0.1
50
1.30±0.2
green
25
