Power Transformers

Power transformers provide no conductive path between source and load to protect against electric shock, to suppress electrical noise in sensitive devices, or to transfer power between two circuits which must not be connected.

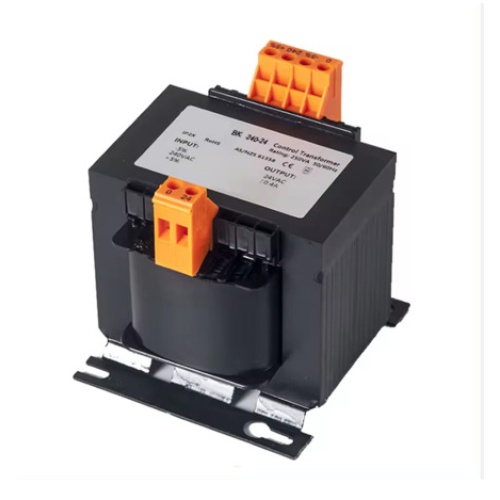

  • Single Phase Isolation Transformer
  • Input Voltage: 240 VAC 50-60 Hz
  • Output Voltage: 24 VAC
  • Ambient Temperature: up to 40℃ or 55℃
  • Fuseless Construction
  • AS/NZS 61558 compliant

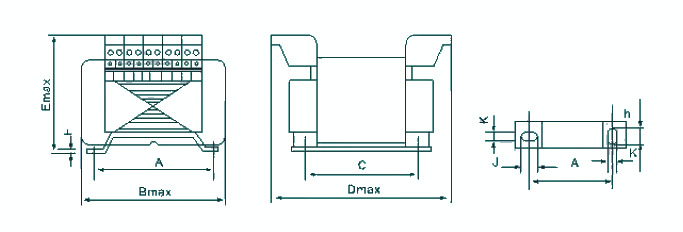

Item
Stock Code
Power Rating (VA)
Overall Bmax (mm)
Overall Dmax (mm)
Overall Emax (mm)
Mount A (mm)
Mount C (mm)
Mount K (mm)
Colour
BK-60
TS2023060
60
60
78
72
90
56
4.6
black
BK-100
TS2023100
100
85
88
96
64
62
4.6
black
BK-150
TS2023150
150
96
92
106
84
73.5
5.5
black
BK-250
TS2320250
250
96
100
106
84
85
5.8
black
BK-500
TS2023500
500
150
114
140
125
92
7.0
black
